YJ4A

Application Scenario

Usage Area: Color steel plate/clean production area

Product Description

IP Grade: With a unique sealing process, the standard protection level can reach lP54, meeting the usage requirements of various clean environments,and facilitating disinfection and cleaning.

Backboard: We use high-strength galvanized steel plates to ensure the overall strength and impact resistance of the lamp.

Structure: back light design, higher light efficiency.

Flanging: Using flanging design, effectively block the cutting surface, ensure the installation surface clean and beautiful.

Our Certification

Advantage
Product Parameters
Parameter Size

Power Supply

lt adopts aninternal power supply design, avoid the power protection and safety hazards on the top plate. The lamp is directly powered byAC 220V.

Light Source

Special imported chips for clean lighting, with blue light level at RG0, harmonics meeting national standards, and light attenuation satisfying the American LM80 standard.

Frame Material

The 6063 aviation aluminum is formed once to ensure the strength of the lamp body.

In and Outlines

Side entry and exit lines make the siteneaterand safer

Product Parameters

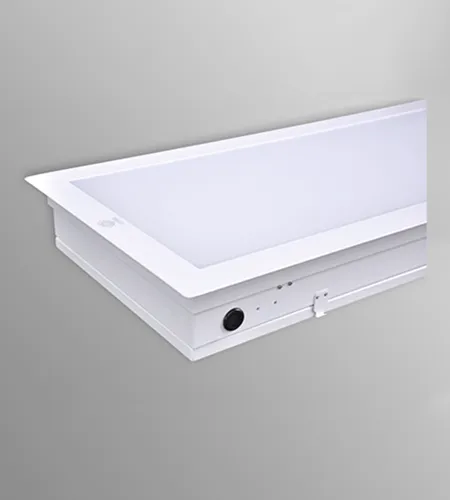

YJ4A Embedded Flanged LED Clean Room Lighting
Model	Item Size/mm	Opening size/mm	Power	luminous flux/LM	lighting effectLM/W	Kelvin/K	IPLevel	light color
YJ4A01-Z0	315315107	285*285	15W	1650	110	4500K	IP54	single-color ( natural light)
YJ4A02-Z0	635315107	605*285	25W	2750
YJ4A03A-Z0	1195315107	1165*285	40W	4400
YJ4A03B-Z0	1195315107	1165*285	60W	6600
YJ4A04A-Z0	572572107	541*541	40W	4400
YJ4A04B-Z0	572572107	541*541	60W	6600
YJ4A04C-Z0	572572107	541*541	80W	8800
YJ4A04D-Z0	692692107	662*662	100W	11000
YJ4A04E-Z0	692692107	662*662	150W	16500
YJ4A05-Z0	1195315107	1165*285	80W	8800
YJ4A06A-Z0	1195375107	1165*345	100W	11000
YJ4A06B-Z0	1195375107	1165*345	150W	16500

YJ4A01-W0	315315107	285*285	15W	1650	110	6500K	IP54	single-color (white light)
YJ4A02-W0	635315107	605*285	25W	2750
YJ4A03A-W0	1195315107	1165*285	40W	4400
YJ4A03B-W0	1195315107	1165*285	60W	6600
YJ4A04A-W0	572572107	541*541	40W	4400
YJ4A04B-W0	572572107	541*541	60W	6600
YJ4A04C-W0	572572107	541*541	80W	8800
YJ4A04D-W0	692692107	662*662	100W	11000
YJ4A04E-W0	692692107	662*662	150W	16500
YJ4A05-W0	1195315107	1165*285	80W	8800
YJ4A06A-W0	1195375107	1165*345	100W	11000
YJ4A06B-W0	1195375107	1165*345	150W	16500

Parameter Size

YJ4A
