Application Scenario

Usage Area: Color steel plate/clean production area

Product Description

1. The lamp is installed by splicing Chinese aluminum with the top plate, with a flat installation surface an dhigh air tightness.

2.The surface adopts nano spray painting technology, which can work normally in any disinfection environment;

3.The procurement structure of the lighting fixtures is desianed to be sealed, and the front protection level of the lighting fixtures is lP65;

4.Sizes can be customized, with a maximum capacityof3000*1180mm;

5.The power coverage of the lamp is 40-300w, and the installation space covers 2.5m-20m,Can meet various spatiallighting needs;

6.Multiple light source combinations meet the lighting needs of different regions and environments;

7.The lighting fixtures can achieve customized border colors and Dimming, color adjustment, wavelength adiustment and other functions.


Download YJGP
Our Certification








Product Parameters

YJGP Product parameters
ModelItem Size/mmPowerluminous
flux/LM
lighting effect
LM/W
Kelvin K/WavelengthNMRaIPLevelInstallation
methods
YJGP40A300*980* 11240W44001103000k4500k6500k590nm≥82
Excluded yellow light
IP54Embedded
Chinese
subtitles
aluminium
splicing
YJGP40B300*1180*112
YJGP40C556*556*112
YJGP60A300*980*11260W6600
YJGP60B300*1180*112
YJGP60C556*556*112
YJGP80A300*980*11280W8800
YJGP80B300*1180*112
YJGP80C556*556*112
YJGP100A360*980*112100W10000100
YJGP100B360*1180*112
YJGP100C676*676*112
YJGP200A360*980*112200W20000
YJGP200B360*1180*112
YJGP200C676*676*112
YJGP300300*1180*112300W2700090

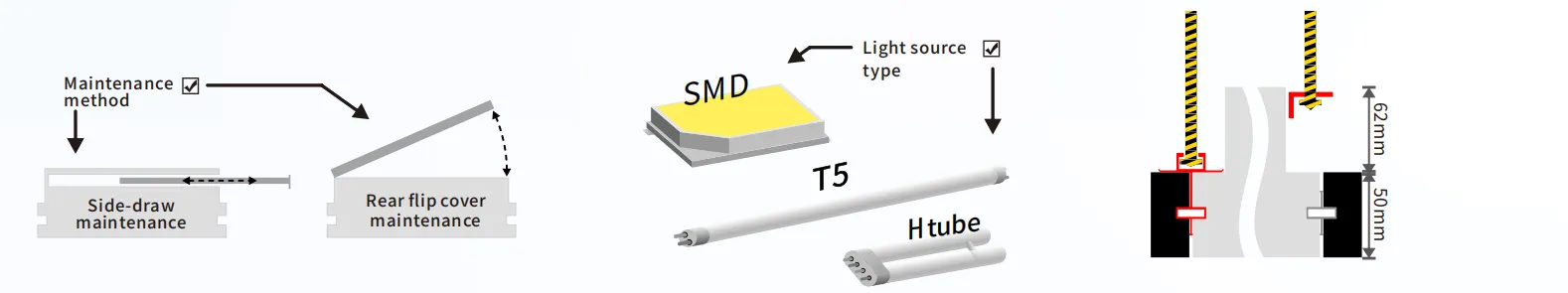

Parameter Size

图层 3.webp
