YJHN

Application Scenario

Usage area: Colorsteel Plate / Clean production area

Product Description

1. The overall protection level ofthe lamp is lP67, with a fully waterproof design;

2. The surface of the lamp adopts nano coating technology, which is resistant to VHP, salt spray and other disinfectants, corrosion-resistant, and suitable for various disinfection environments;

3. The surface of the lamp adopts anti glare design, with a UGR of less than 19 for the entire lamp and a blue light hazard level of Rg0；

4. This lamp is designed to be fully enclosed and suitable for clean rooms with a maximum pressure difference of + 150Pa;

5. The lamp adopts a ceiling mounted installation method, which includes three installation forms: front screw fixation+seamless silicone plug, back hidden bracket, and back magnetic suction.

Our Certification

Advantage
Product Parameters
Fixed Led Waterproof Clean Light
Parameter Size

Outer Frame

Made of 6063 aviation aluminum material and processed using nano spraying technology, suitable for various corrosive environmentsThe environment and beveled design make the installation contact surface more conducive to cleaning, with no risk of dust absorption.

Waterproof Liquid Tank

The front and back cavities of the lamp are sealed with double-layerliquid tanks, with a protection level of IP67. The whole body is washed with water and fully protected Water design.

Customized Waterproof DC Connector

Customized waterproof DC connectors are sturdy and reliable, ensuring that there is no risk of water ingress into the outlet holes of the lighting fixtures.

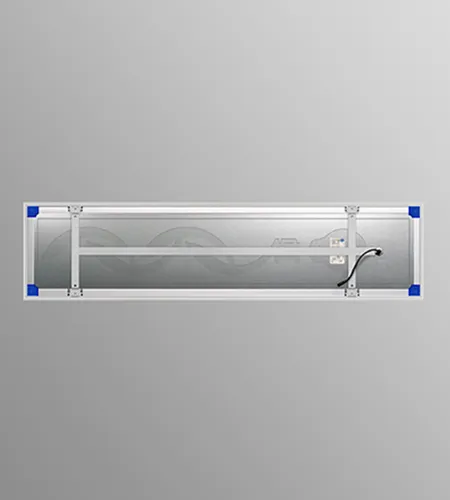

Batten

Professional customized pressure strip, screw free assembly of the entire lamp, uniform force on the back panel, and no dark areas on the light emitting surface.

Product Parameters

YJHN1 (Self-tapping Screws) Product Parameters
Model	Item Size/mm	Power/W	luminous ﬂux/LM	lighting effect LM/W	Kelvin	Ra	IP Level	Installation methods
YJHN101	240240 12	12W	1320	110	2800K-3200K 4000K-4500K 6500K-7000K	≥82	IP67	Front screw ﬁxing
YJHN102	240600 12	26W	2860
YJHN103A	240980 12	36W	3960
YJHN103B	240* 1170* 12	56W	6160
YJHN104A	480480 12	36W	3960
YJHN104B	480480 12	56W	6160
YJHN105	480* 1170* 12	72W	7920

Fixed Led Waterproof Clean Light

Basic Function

Fixed LED waterproof clean light, meeting the lighting needs of clean rooms

Place of Use

Cleanrooms such as pharmaceutical factories, food processing workshops, electronic factories, or other indoor areas that require waterproofing and anti-corrosion requirements.

Parameter Size

YJHN
