YJFBD
Usage Area：Explosion-proof cleanarea/ Raw material explosion-proof processing area/General explosion-proof area
Product DescriptionIt adopts an external cast iron sealing box design, which is easy to maintain and ensures stable operation.
The explosion-proof grade of the lighting reached Exd ll B T6 Gb, suitable foruse inexplosion-proof Zone 1; the protection gradeis IP 66, meeting the lighting requirements of all types of clean rooms.
Thelamp is made of cast aluminum shell and steel glass to resist corrosion and impact. Adoptinclined edge design, no dead Angle afterinstallation, easy to clean.
The lamp is made of cast aluminum shell and steelglass to resist corrosion and impact.Adoptinclined edge design, no dead Angle afterinstallation, easy to clean.

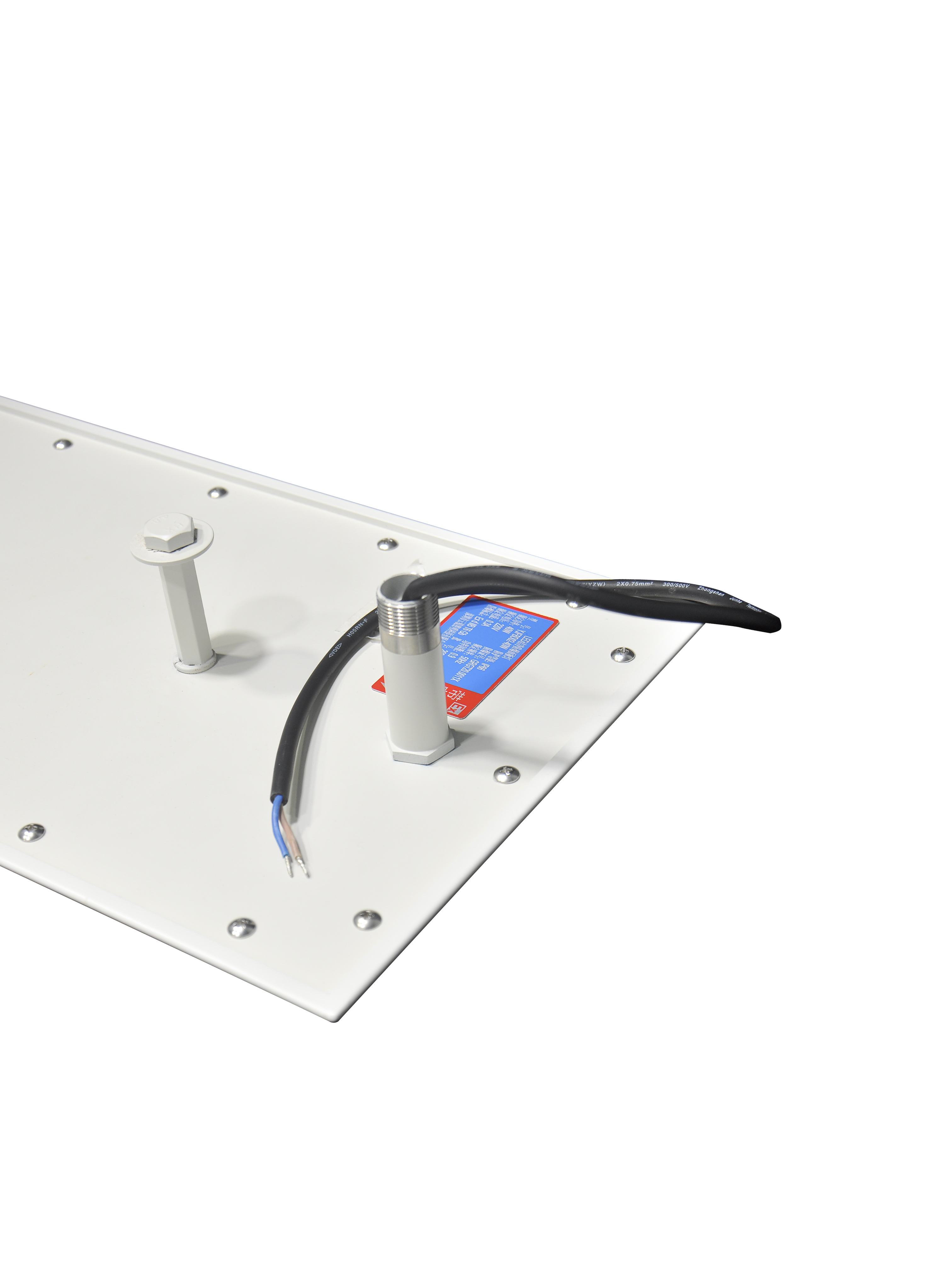

The lamp is self-equipped with an explosion-proof connectorand an expiosion-proof flexible tube to
ensure safe operation of the lamp.
Product Parameters
| YJFBD Ultra Thin LED Explosion-Proof Clean Room Lighting (Explosion-Prooftype) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Item Size/mm | Power | luminous flux/LM | lighting effectLM/W | Kelvin/Wavelength | Ra | IP Level | Explosion -Proo level | Installation methods | ||
| YJFBD02-25W | 240*600*27 | 25w | 2500 | 100 | 4500k | 6500k | 590nm | ≥282 | IP65 | Exd IIB T6 Gc | Ceiling screws |
| YJFBD02-40W | 240*1170*27 | 40w | 4000 | ||||||||
| YJFBD02-60W | 240*1170*27 | 60w | 6000 | ||||||||
Parameter Size
