YJFB
Usage Area：
Explosion-proof clean area/ Raw material explosion-proof processing area/General explosion-proof area
The explosion-proof grade of the lighting reached ExnR llB T6 Gc, lP level reached lP65
The lightings adopt with an ultra-thin design, with a body thickness of 25 mm.
The lamp body is made of 6063 aviation aluminum through one-time molding, and the face mask is explosion-proof glass.
It is widely applied in raw material production workshops, explosion-proof warehouses, etc.
Product Parameters
| YJBPY Ordinary LED explosion-proof lamp(Tube Type) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Item Size/mm | Power | luminous flux/LM | lighting effectLM/W | Kelvin/Wavelength | Ra | IPLevel | Explosion -Proo level | Installation methods | ||
| YJFB02-26W | 240*600*22 | 26w | 2600 | 100 | 4500k | 6500k | 590nm | ≥82 | IP65 | ExnR llB T6 Gc | Ceiling-mounted with screw rod |
| YJFB02-36W | 240*1170*22 | 36w | 3600 | ||||||||
| YJFB02-56W | 240*1170*22 | 56W | 5600 | ||||||||

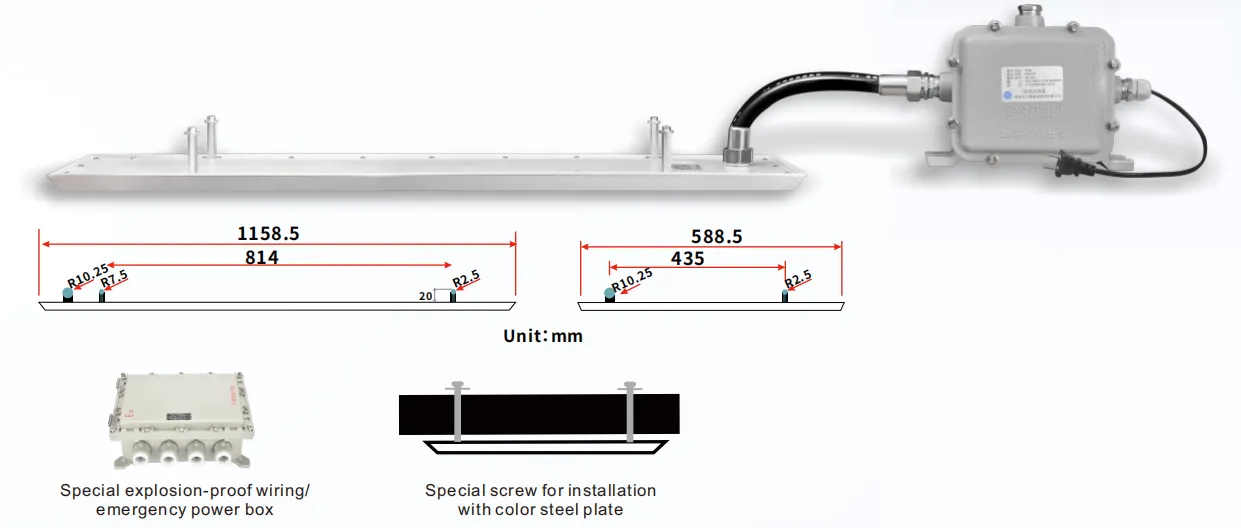

Parameter Size
