Product Parameters
| YJBPY Ultra Thin LED Explosion-Proof Clean Room Lighting (Explosion-Prooftype) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Item Size/mm | Power | luminous flux/LM | lighting effectLM/W | Kelvin/K | IP Level | light color | Installation methods |
| YJBPY-1*18w-XD | Φ145*1320 | 18W | 1800 | 100 | 4500K | IP54 | single-color(white light) | Ceiling-mounted and suspended installation in the general area Optional accessories (hanging pipe) |
| YJBPY-1*18w-XD | Φ210*1320 | 36W | 3600 | 4500K | single-color(white light) | |||
| YJBPY-1*18w-DG | Φ145*1320 | 18W | 1800 | 6500K | single-color(white light) | |||
| YJBPY-2*18w-DG | Φ210*1320 | 36W | 3600 | 6500K | single-color(white light) | |||

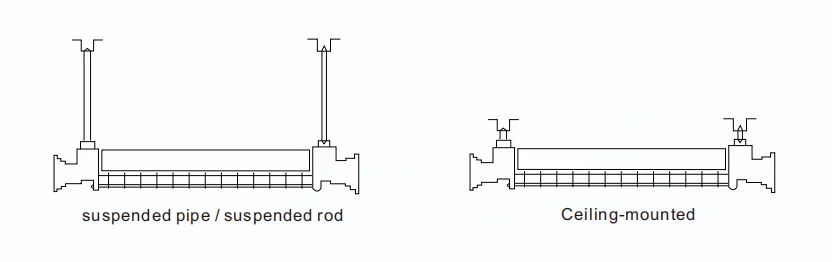

Parameter Size
Remark: All lamps can be equipped with emergency devices, "-E" after the modelindicates that the lamp is anemergency lamp For example :YJ103A-L0-Z-Eis a 40w cold white light cleanlamp representing240* 1170.
